Steel Diamond Mesh Fencing Machine / Automatic Chain Link Fencing Machine 380V

The Innovative ZWJ-2000 diamond mesh machine / Chain Link Fence Machine

he Innovative JLZ-2000 diamond mesh machine use the Principle of Bionics. It is the integration of machinery ,PLC control and aerodynamics. Simulating cross the mesh by hand. Automaticlly overlock and wrap the mesh . the main technical parameters take the lead in the same species.

good performance:

1. production efficiency is monoploid or twice of the same species.

2. the fault is the lowest in the same species.

3 the machine is easy and simple to handle. The worker has the common mechanical knowledge can master it in one hour .

4. the loss of the Raw materials of the same species is 5%-7%, while The Innovative JLZ-2000 diamond mesh machine is nearly zero .

5. the electrical energy The Innovative JLZ-2000 diamond mesh machine can save is about 20%.

6. it is suitable to all kinds of mild steel wire.

7. mesh size has a wide Adjustable Range.

8. the Concessions piice and The First-class Quality is the most Ideally choice of the customers The main Technical parameters :

The main Technical parameters :

1. the outside size : the central machine :5750mmx3500mmx2000mm

　　　　　　　　　the assistant machine :5500mmx1400mmx1600mm

2. the power: 7kw , 2.2kw , 0.75 kw, 0.08 kw.

3. the Diameter of the wire : 1.6mm—4mm

4. mesh size :35mm-80mm

5. the width : 600mm-2000mm

6. the Production efficiency: 65-100m2 per hour

　　　　　　　 ( mesh size : 50mm-100mm)

chain link weaving machine

diamond mesh fencing machine

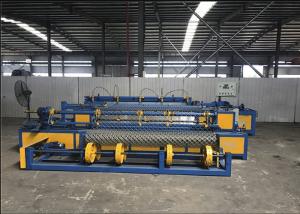

Steel Diamond Mesh Fencing Machine / Automatic Chain Link Fencing Machine 380V Images
